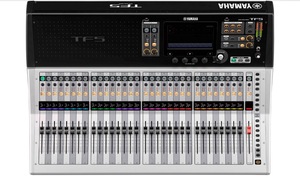

Yamaha TF5 32 Channel Digital Mixer

The Yamaha TF series Digital mixing consoles represent years of continuous development. Yamaha is among the world's most experienced designers of digital consoles, but for the TF project, engineers started from scratch, rethinking the way people approach mixing sound, and careful not to get caught up in any conventions or presupposed best practices without a thorough reaxamination. The team that created this console have more than 70 years of aggregated experience mixing shows of all genres, so they have firsthand experience with the chief concerns musicians have with regard to mixing. The Yamaha TF3 is the granddaddy of the three available versions of the TF mixer series, ideal for scenarios that require large numbers of simultaneous inputs. It may be the perfect thing for your stage or studio.

Based around an intuitive multi-touch screen and a simple touch and turn knob getting around and making adjustments is simple and fast. Simple swipe, pinch and pull gestures and double touches invite the user to make adjustments, and the always available Touch and Turn control makes precise adjustments a breeze. The TF5 boasts the following primary features:

• 33 motor faders (32 channels + 1 master)
• 48 input mixing channels (40 mono + 2 stereo + 2 return)
• 20 AUX (8 mono + 6 stereo) + stereo + sub buses
• 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line analog inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 1 expansion slot for NV64-D audio interface card
